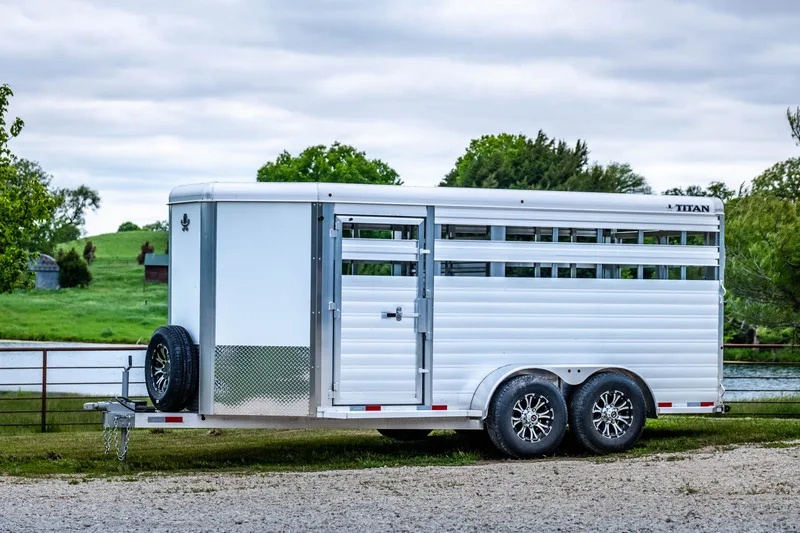

Aluminum Bumper Hitch Livestock
Available Lengths
14′, 16′, 18′
Available Paint Colors
- Birch Metallic
- Bright Red
- Bright Silver Metallic
- Chestnut Metallic
- Construction Yellow
- Dark Gray Metallic
- Deep Blue Metallic
- Deep Green Metallic
- Deep Red Metallic
- Gunmetal Metallic
- Implement Orange
- Jet Black
- Stealth Gray Metallic
- Super White
Estimated Weights
LengthAxlesEst. Base Weight
14′2 x 6000#2740#
16′2 x 6000#3200#
18′2 x 6000#3660#
Standard Features
- Contoured Smooth Extruded Side
- Tapered Nose
- 1 Piece Polypropylene Honeycomb Roof
- Aluminum Wheels, Matching Spare
- Illuminated Titan Hat Nose Graphic
- 8 Bolt Hubs with 9/16″ Studs
- Escape Door on Driver Side
- Teardrop Aluminum Fenders
- Plexiglas Track
- Safety Transport Chain & Hooks
- Rubber Rear Bumper
- 6’6″ Inside Height
- 6’8″ wide
- 22-1/2″ Up Torsion EZ Lube Axles w/ Electric Brakes on all 4 Wheels
- 15″ Load Height
- Uprights & Roof Bows on 16″ Centers
- 1 LED Dome Light per Compartment
- Sealed Beam Recessed LED Lights
- 6″ Running Boards
- Back Gate w/ 1/2 Slide, Slam Latch, & Butterfly Latch
- Reflective Tape on Trailers over 10000# GVWR
- 7-Prong Heavy Cord w/ Junction Box
- Breakaway Battery Box with Charger and Tester
Optional Features
Height & Width Options
- 7′ Tall
- 7’6″ Tall
- 8′ Tall
Aluminum Options
- Aluminum Hay Rack and Ladder (6’8″ wide)
Axles (Non-Standard Axles may increase lead time)
- 7000# Torsion EZ Lube
Jacks
- 5K Topwind Jack
Flooring Options
- Sure Foot Floor with Drain Holes (Rubber Floor System – Self Draining)
- Rubber Mats
Dressing Room/Tack Room Options
- Carpet Package
- 3 Tier Saddle Rack
- 4 Tier Saddle Rack
- 4 Tier Swing-Out Blanket Bar
- Bridle Hooks
Gates & Compartments
- Sliding Center Gate
- Extra Center Gate
- Extra Sliding Center gate
- Floating Center Gate (will adjust from fenders forward and store in front of Escape Door)
- Extra Gate Setting
- Delete Center Gate
- Extra Escape Door
- Split Escape Door
- Escape Door Moved to Passenger Side
- Slant Divider
- Stud Divider
- Double Back Doors
- One Piece Slatted Back Gate w/ Cam Lock
- One Piece Enclosed Back Gate w/ Cam Lock
- One Piece Enclosed Back Gate with 1/2 Slide
- Fold Down Rear Ramp Behind Standard Back Gate
- Fold Down Rear Ramp With Double Doors Above
- 4′ Wide Full Height Side Ramp in Lieu of Escape Door
- 4′ Wide Full Height Side Ramp Behind Escape Door or Opposite Escape Door
- Dressing Room Wall with HD Door and Window in Door
- Full Width Mid Tac Wall with HD Door and Window in Door
- Walk-Thru Door in Dressing Room Wall
- Collapsable Rear Tack (with one piece back gate)
- Mangers With 2 Outside Doors (per stall)
Vents & Lights
- 2-Way Pop-Up Roof Vent
- Extra Clearance Light
- Extra LED Dome Light
- Lighted Customized Name Plate on Nose (special order item)
- 3 Lights in Nose
Miscellaneous Options
- Double Walled with Aluminum
- Kick Mats on Double Wall
- Kick Mats on Slant Wall
- Plexiglas
- Double Deck
- 12″ Uprights & Roof Bows
- Aluminum Tie Rail
- Bolt on Aluminum Outside Ties
- Paint Nose Sheets (standard colors)
- Mid Mount Drop Down Feed Door with Window and Drop Bars
- 18 x 24 Bus Window on Butt Side
Fender Options
- Brush Fenders
- Heavy Duty Fabricated Fenders
