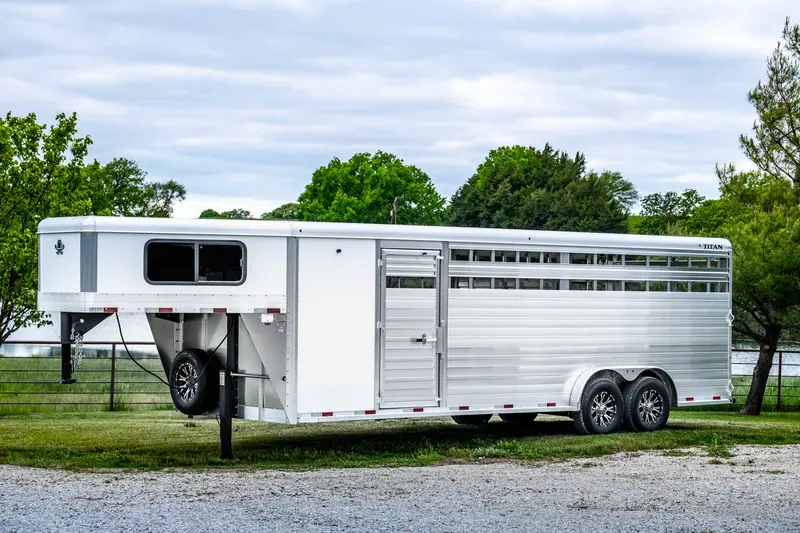

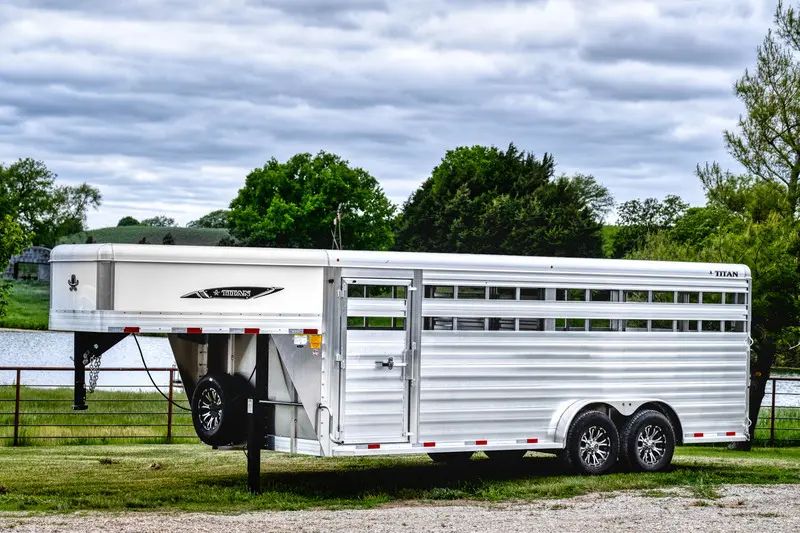

Aluminum Gooseneck Livestock
Available Lengths
16′, 18′, 20′, 22′, 24′, 26′, 28′, 30′, 32′
Available Paint Colors
Birch Metallic
Bright Red
Bright Silver Metallic
Chestnut Metallic
Construction Yellow
Dark Gray Metallic
Deep Blue Metallic
Deep Green Metallic
Deep Red Metallic
Gunmetal Metallic
Implement Orange
Jet Black
Stealth Gray Metallic
Super White
Estimated Weights
Length
Axles
Est. Base Weight
16′
2 x 7000#
3800#
18′
2 x 7000#
4100#
20′
2 x 7000#
4400#
22′
2 x 7000#
4850#
24′
2 x 7000#
5300#
26′
2 x 7000#
5800#
28′
2 x 7000#
6450#
30′
2 x 7000#
7000#
32′
2 x 7000#
7700#
Standard Features
Contoured Smooth Extruded Side
6’6” Inside Height
Tapered Nose
7-1/2′ Wide
1 Piece Polypropylene Honeycomb Roof
22-1/2* Up Torsion EZ Lube Axles with Electric Brakes on all 4 Wheels
Aluminum Wheels, Matching Spare
15″ Load Height
Illuminated Titan Hat Nose Graphic
Uprights & Roof Bows on 16” Centers
8 Bolt Hubs with 5/8” Studs
1 LED Dome Light per Compartment
Fold Down Calf Gate in Nose
Sealed Beam Recessed LED Lights
Teardrop Aluminum Fenders
6″ Running Boards
Plexiglas Track
Back Gate w/ 1/2 Slide, Slam Latch & Butterfly Latch
Safety Transport Chains & Hooks
Adjustable 2-5/16” Coupler
Rubber Rear Bumper
7-Prong Heavy Cord w/Junction Box
Reflective Tape on Trailers over 10000# GVWR
Breakaway Battery Box with Charger and Tester
Escape Door on Driver Side
Spring Loaded Dual Pin Jack
Optional Features
Height & Width Options
7′ Tall
7’6″ Tall
8′ Tall
Aluminum Options
Aluminum Hay Rack & Ladder (7’6″ wide)
Axles (Non-Standard Axles may increase lead time)
Triple 7000# Torsion EZ Lube Axles
8000# Torsion EZ Lube Axles
Jacks
Double Jacks
Flooring Options
Sure Foot Floor with Drain Holes (Rubber Floor System – Self Draining)
Rubber Mats
Dressing Room/Tack Room Options
Carpet Package
3 Tier Saddle Rack
4 Tier Saddle Rack
To Make Saddle Rack Swing Out
4 Tier Swing-Out Blanket Bar
Bridle Hooks
Gates & Compartments
Sliding Center Gate
Extra Center Gate
Extra Sliding Center gate
Floating Center Gate (will adjust from fenders forward and store in front of Escape Door)
Extra Gate Setting
Delete Center Gate
Extra Escape Door
Escape Door Moved to Passenger Side
Slant Divider
Stud Divider
Double Back Doors
One Piece Slatted Back Gate w/ Cam Lock
One Piece Enclosed Back Gate w/ Cam Lock
One Piece Enclosed Back Gate with 1/2 Slide
Fold Down Rear Ramp Behind Standard Back Gate
Fold Down Rear Ramp With Double Doors Above
4′ Wide Full Height Side Ramp in Lieu of Escape Door
4′ Wide Full Height Side Ramp Behind Escape Door or Opposite Escape Door
Dressing Room Wall with HD Door and Window in Door
Full Width Mid Tac Wall with HD Door and Window in Door
Walk-Thru Door in Dressing Room Wall
Tack Door in Nose (Framed and Sealed)
Collapsable Rear Tack (with one piece back gate)
Mangers With 2 Outside Doors (per stall)
Vents & Lights
Sliding Vents Under Nose
2-Way Pop-Up Roof Vent
Extra Clearance Light
Extra LED Dome Light
Lighted Customized Name Plate on Nose (special order item)
3 Lights in Nose
Miscellaneous Options
Double Walled with Aluminum
Kick Mats on Double Wall
Kick Mats on Slant Wall
Plexiglas
Double Deck
12″ Uprights & Roof Bows
Aluminum Tie Rail
Bolt on Aluminum Outside Ties
V-Nose
Paint Nose Sheets (standard colors)
Battery Tray
LP Tray
Mid Mount Drop Down Feed Door with Window and Drop Bars
18 x 24 Bus Window on Butt Side
2- 18 x 44 Bus Window In Nose
Fender Options
Brush Fenders
Heavy Duty Fabricated Fenders
